400W Solar Panel Kit 12V Monocrystalline Solar Panel with 40A MPPT Solar Charge Controller, Mounting Z Bracket, 20FT 10AWG Solar Cable, 8Ft 10AWG Tray Cable, LCD Dispaly, 40.1 X 20 X 1.18 Inches
400W Solar Panel Kit 12V Monocrystalline Solar Panel with 40A MPPT Solar Charge Controller, Mounting Z Bracket, 20FT 10AWG Solar Cable, 8Ft 10AWG Tray Cable, LCD Dispaly, 40.1 X 20 X 1.18 Inches
🔥 Almost sold out – Once they’re gone, they’re gone!
🚚 Free shipping on all orders
💯 [30]-day satisfaction guarantee
Don’t miss out—click below to secure yours!
Couldn't load pickup availability
400W Solar Panel Kit 12V Monocrystalline Solar Panel with 40A MPPT Solar Charge Controller, Mounting Z Bracket, 20FT 10AWG Solar Cable, 8Ft 10AWG Tray Cable, LCD Dispaly, 40.1 X 20 X 1.18 Inches
Get it between - and -.

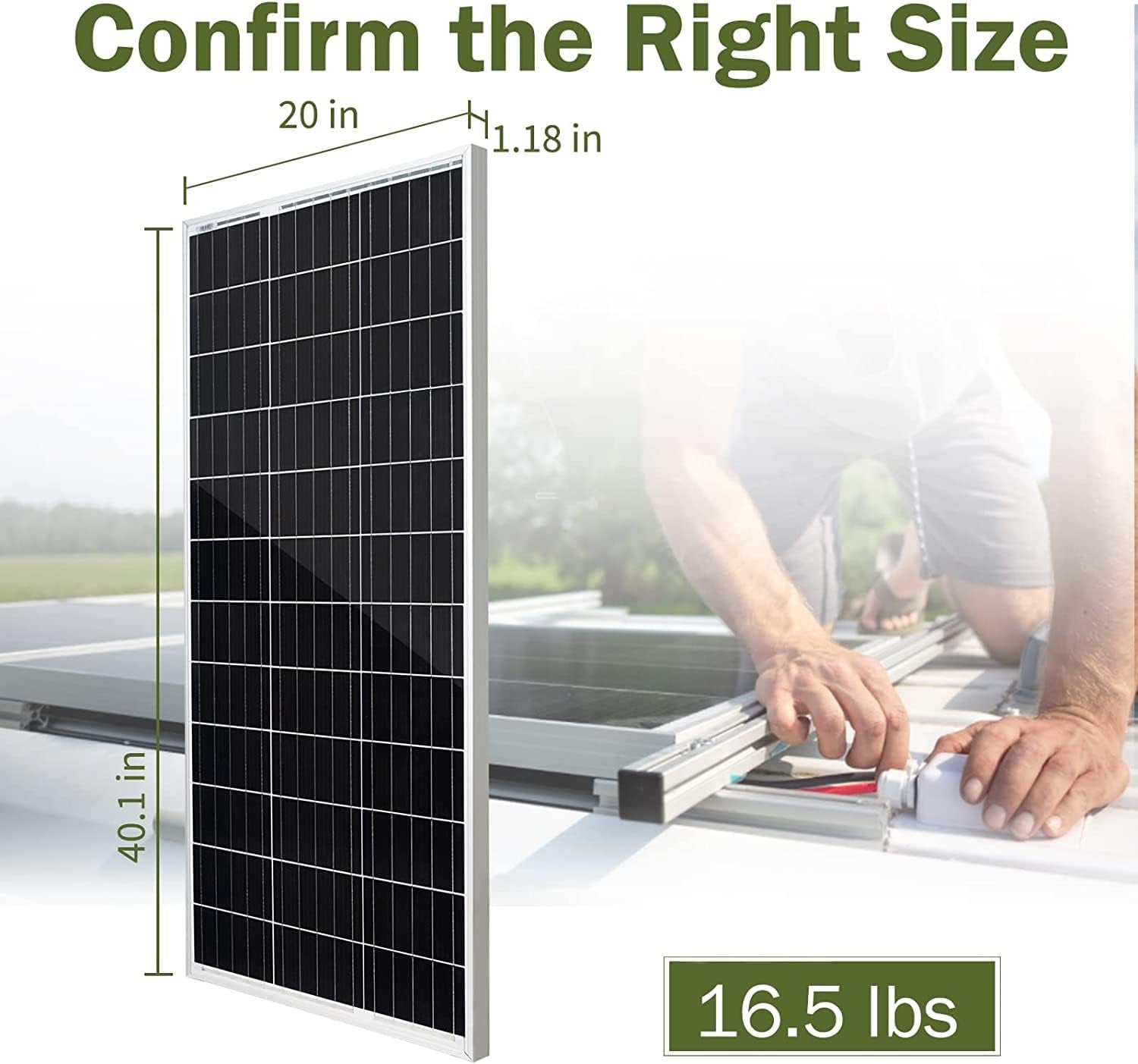

- 【Installation Ready】The kit includes 4 pack 100 Watt 12 Volt Monocrystalline Solar Panel, 40 Amp 12V/24V MPPT Solar Charge Controller, LCD Display,20Ft 10AWG Solar Panel and Controller Connector Cables, 8FT 10AWG Controller and battery Connector cables,4 Set of Mounting Z Brackets.For Good Partner Battery, please search B08XMB96P4. The dimension of solar panel is 40.1 x 20 x 1.18 inches.
- 【Versatile】Used in various off-grid applications that include 12 and 24 volts arrays, water pumping systems, signaling systems and other off-grid applications. Great for off-grid applications, such as RVs, trailers, boats, sheds, and cabins.
- 【Durable】Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades.Pre-drilled holes on the back of the panel allow for fast mounting and securing. IP65 rated junction box provides complete protection against environmental particles and low pressure water jets.
- 【Suitable for LiFePO4 Battery】The Asin of Battery:B08XMB96P4.This kit is suitable for HQST 12 Volts 100Ah Lithium Iron Phosphate Battery, Extended lifespan of LiFePO4 Battery with more than 2000 cycles. The service life is more than FIVE-times that of traditional lead acid batteries. Low self-discharge- the Battery self- discharges below 3% per month, providing optimal longevity and shelf life.

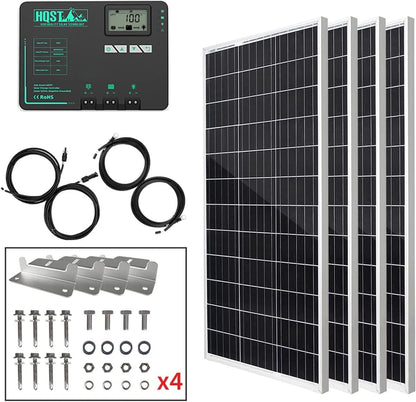

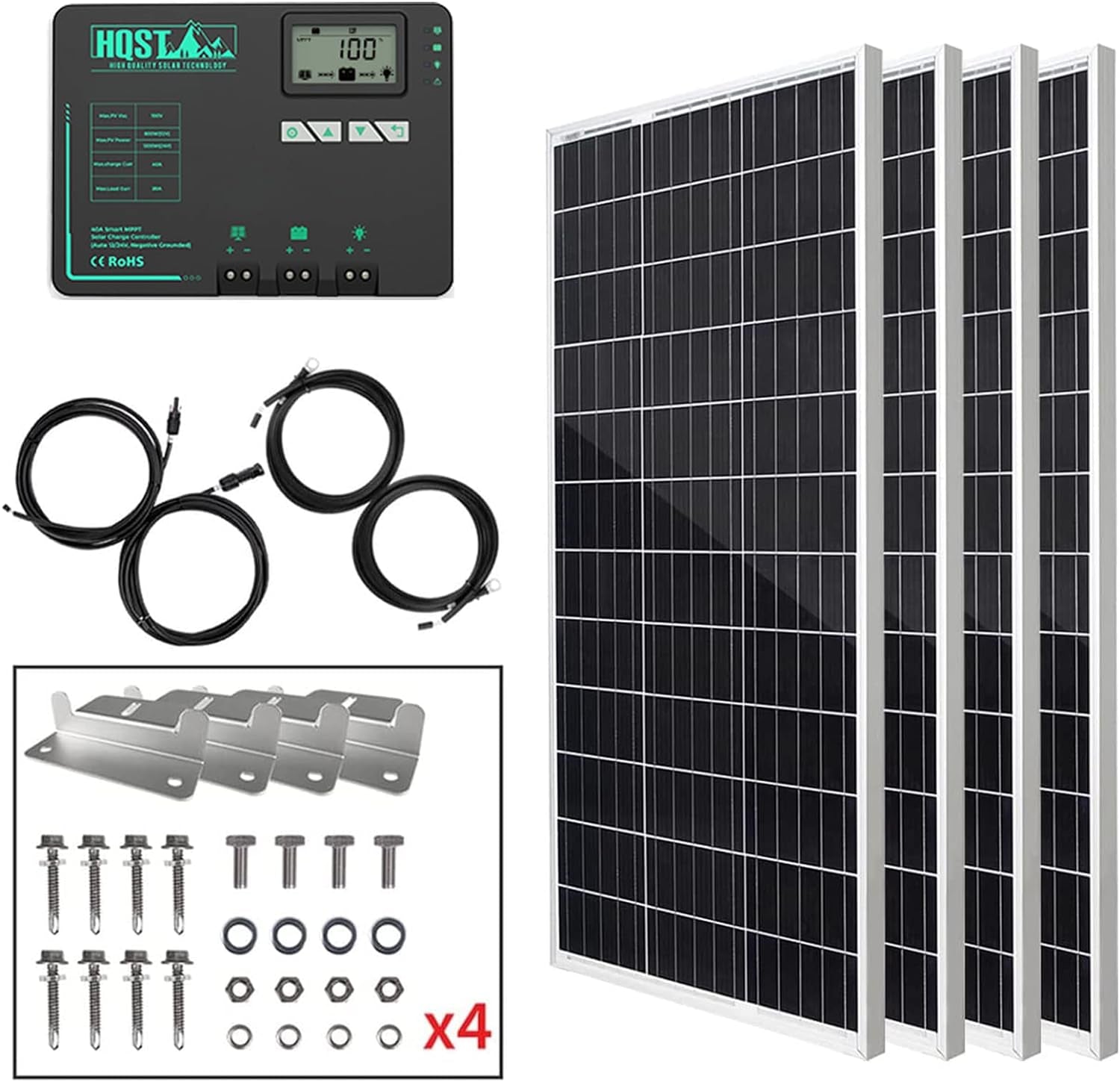

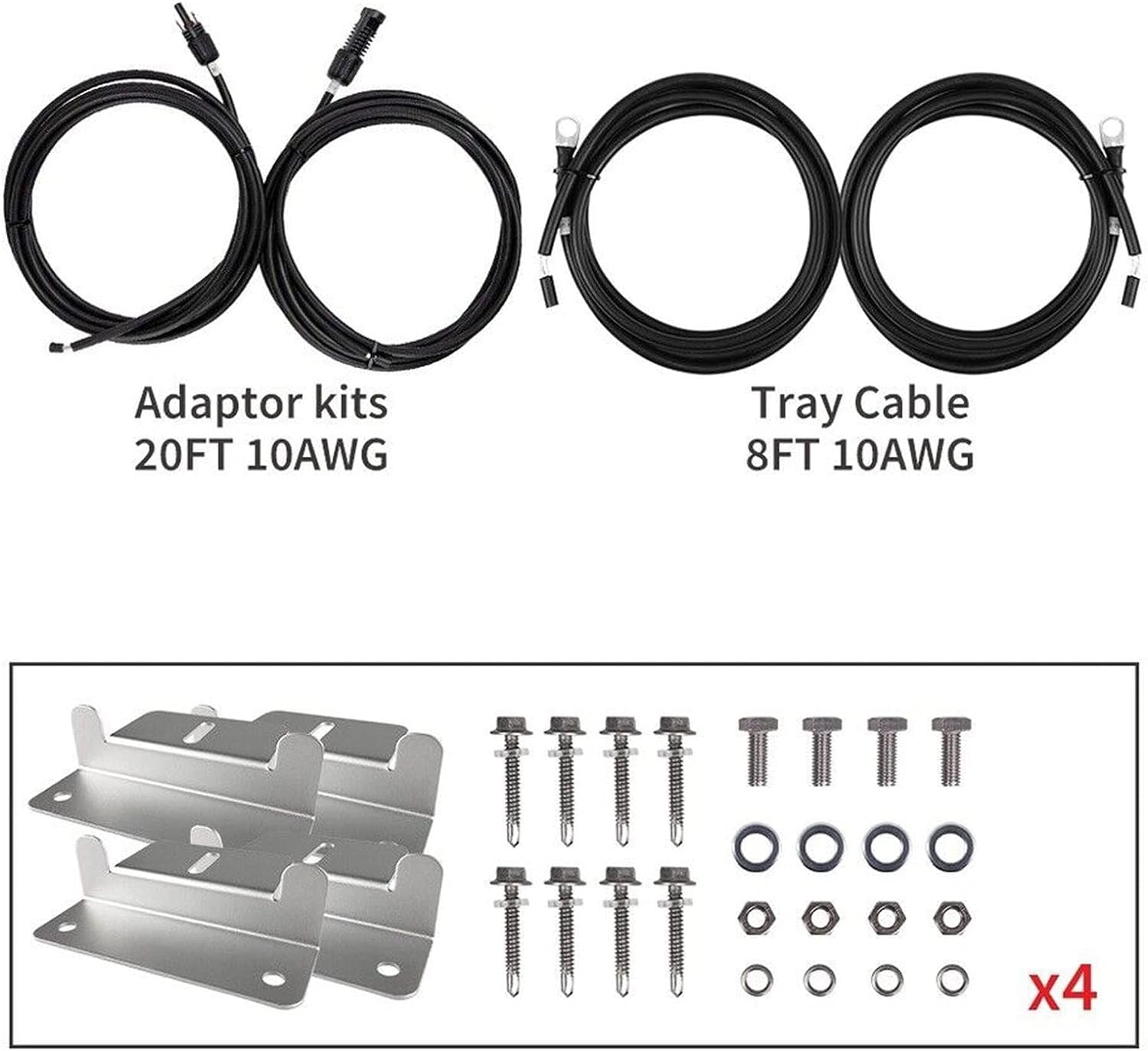

- 【What You Will Get】- 4 x 100 Watt 12 volt monocrystalline solar panels; 4 x mounting Z brackets sets; 1 x MPPT40 solar charge controller; 1 x 20ft 10 AWG solar panel cables and controller connector cables; 1 x 8ft 10 AWG controller and battery connector cables; 1 x LCD Display Screen
Product Description

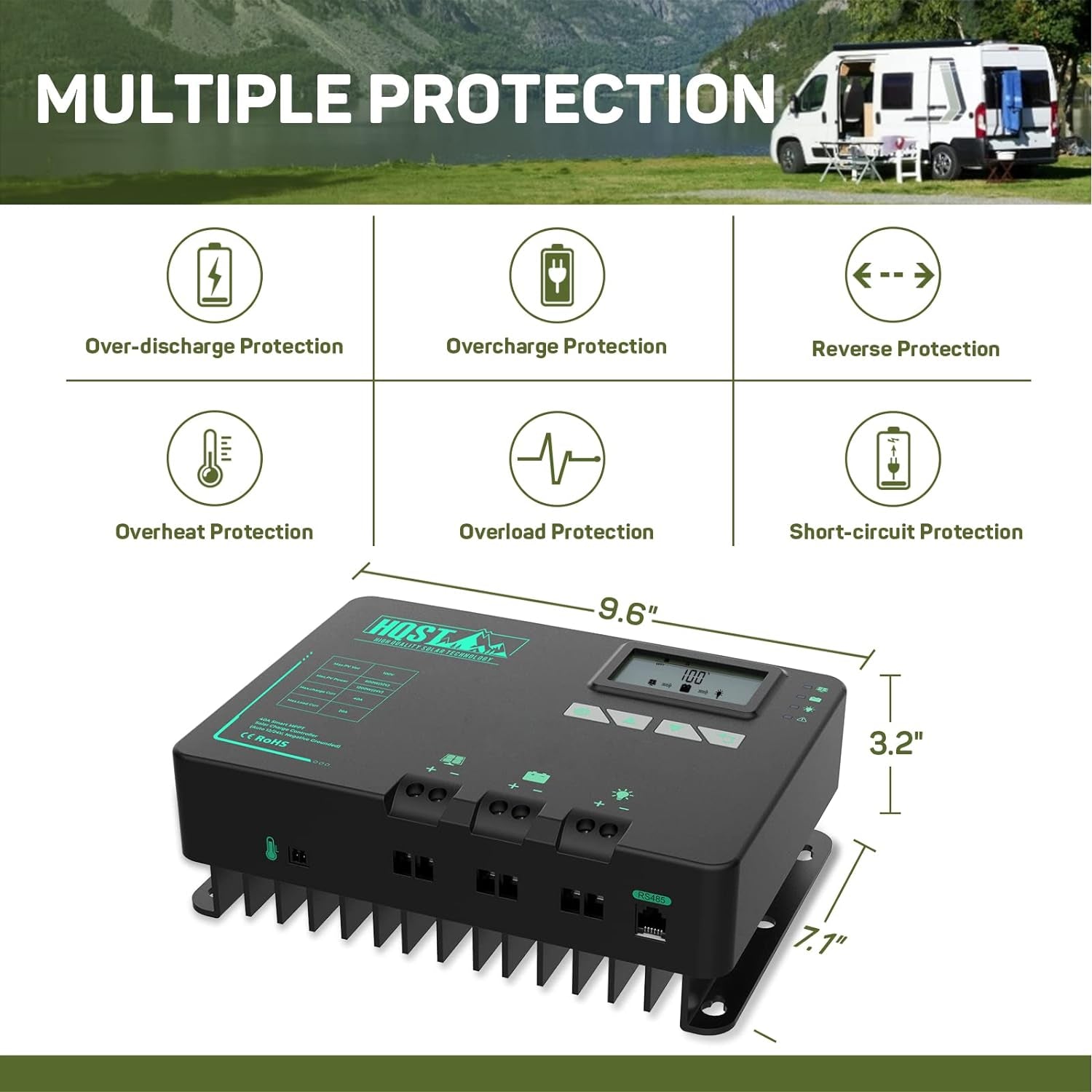

HQST 40 Amp Li MPPT Bluetooth Solar Charge Controller

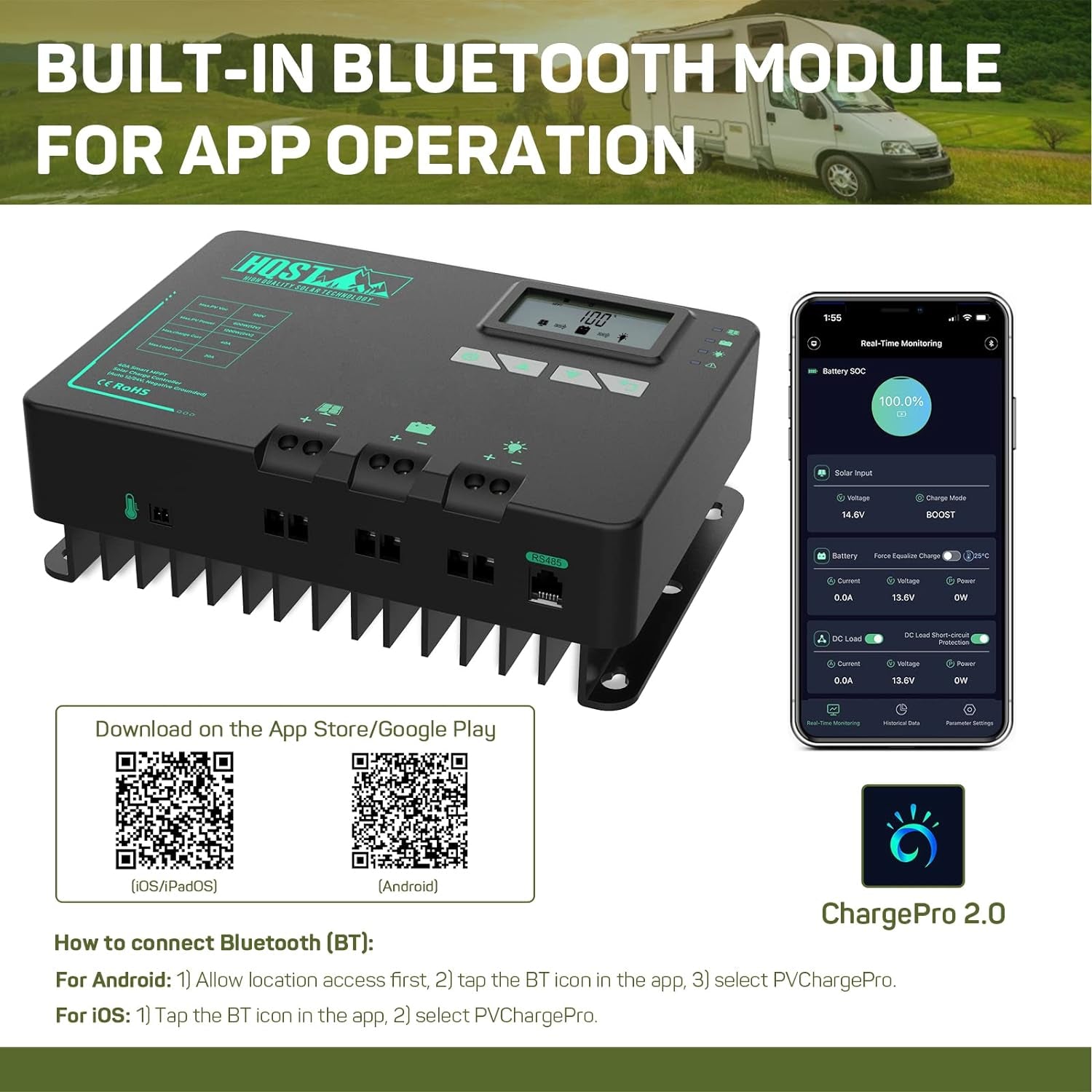

- Built-in Bluetooth module for monitoring and parameters settings
- Auto-recognition of 12/24V battery system
- Battery temperature compensation function
- Battery System Voltage: 12V/24V
- Rated Charging Current: 40A
- Self-consumption: 12mA/12V; 10mA/24V
- Max PV Input Voltage: 100V
- Max PV Input Power: 600w/12v; 1200w/24v
- Operating Temperature: -31℉ ~ 113℉
- Communication Port: RS485
- Weight: 4.8 lbs
HQST 400W Monocrystalline Solar Panel + 40A MPPT Solar Charge Controller
HQST 400W solar panel kit is an important component in establishing an off-grid solar energy system. With up to 21% high efficiency monocrystalline solar panels are easy to install and long life, virtually maintenance free. Ideal for charging the batteries for RV, marine, camping, house, etc.

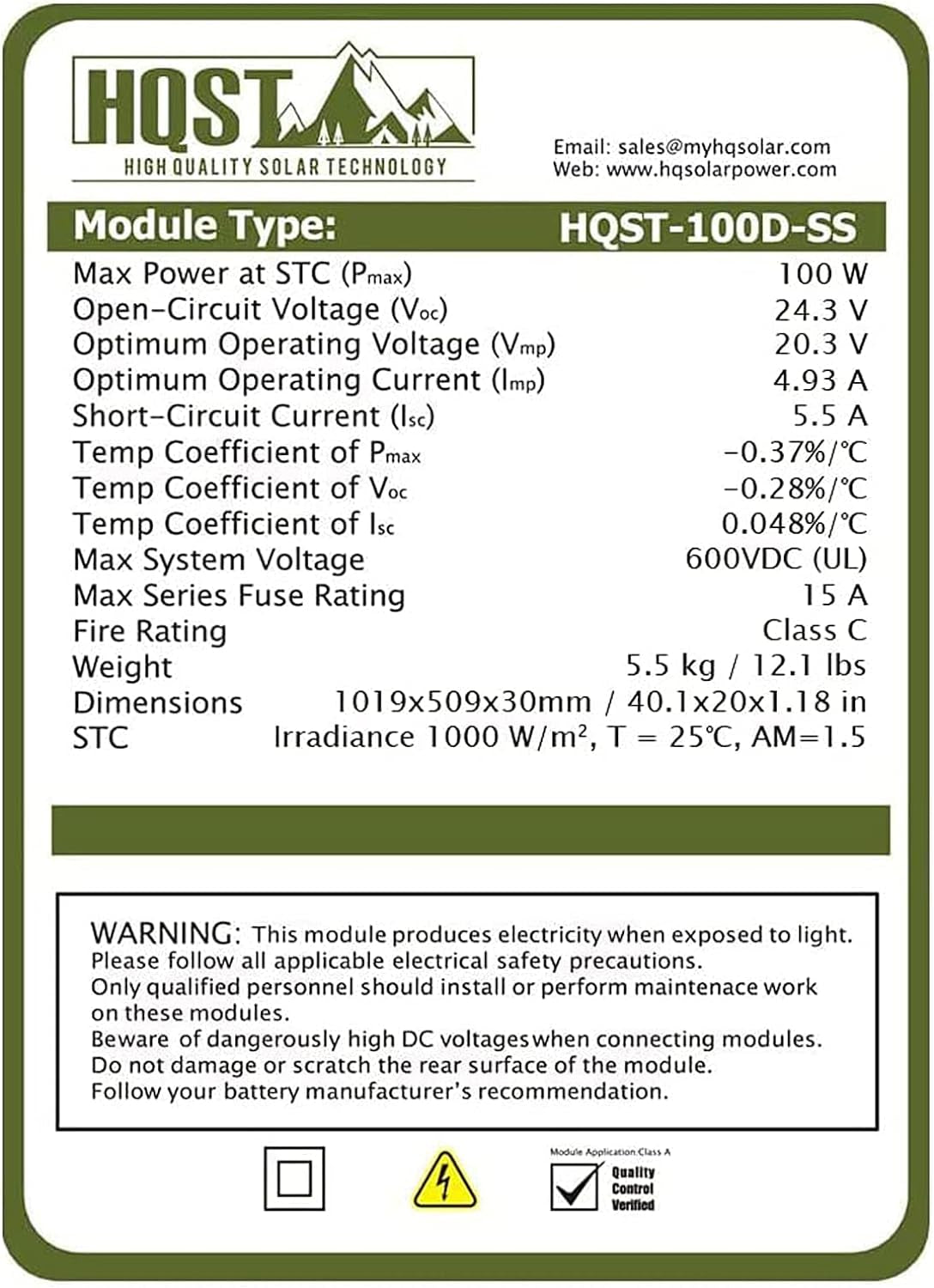

Specifications:
- Maximum Power: 100W
- Open-Circuit Voltage (Voc): 24.3V
- Short-Circuit Current (Isc): 5.5A
- Optimum Operating Voltage (Vmp): 20.3V
- Optimum Operating Current (Imp): 4.93A
- Maximum System Voltage: 600VDC UL
- Maximum Series Fuse Rating: 15A
- Weight: 12.1lbs
HQST Solar Panels
IP65 Junction BoxIP65 rated junction box with internal sealing rubber ring provides complete protection from environmental particles, water splashes, and low-pressure water jets. | Anti-Corrosion Aluminum FrameHQST solar panel kit built with a rugged corrosion-resistant aluminum frame, it protects the solar cells greatly from breakage or distortion in tough outdoor conditions for long-lasting durability. | Maximize Power ConversionHQST adds bypass diodes to this solar panel, which can minimize power drops caused by shade and ensure excellent performance in low-light environments. |
Efficient Heat DissipationThe die-cast aluminum heat sink increases heat dissipation efficiency, which can minimize power loss from heat. | RS485 Communication PORTSSupport for external LCD display/ Bluetooth module/running two units in parallel | Built-in Bluetooth ModuleEasy for checking real-time data and setting parameters via mobile phone APP that keeps 300 days of historical data. | Temperature SensorIt senses the environment temperature. Put this sensor near the battery. |
Higher Charging Power
Thanks to the gel-filled inside and die-cast aluminum heat sink design, the charging power of our HQST 40A MPPT controllers only decreased by 8% after 90 minutes of operation, while the conventional 40A MPPT controllers decreased by 60% after 20 minutes. Fully charge your battery bank faster.
Support Wiring Two MPPT Controllers of the Same Series in Parallel
Two units of the same series(M2420N/M2440N/M4860N) could work together to charge the same battery bank through the parallel charge cable(parallel cables are NOT included). You can combine 20A+40A, 20A+60A, 40A+60A, 20A+20A, 40A+40A, 60A+60A.
| Customer Reviews | 4.4 out of 5 stars 222 | 4.4 out of 5 stars 222 | 4.4 out of 5 stars 222 | 4.4 out of 5 stars 222 |
|---|---|---|---|---|
| Price | — | — | — | $514.99$514.99 |
| Solar Panel Type | Monocrystalline | Monocrystalline | Monocrystalline | Monocrystalline |
| Charge Controller Type | PWM | PWM | PWM | MPPT |
| System Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V |

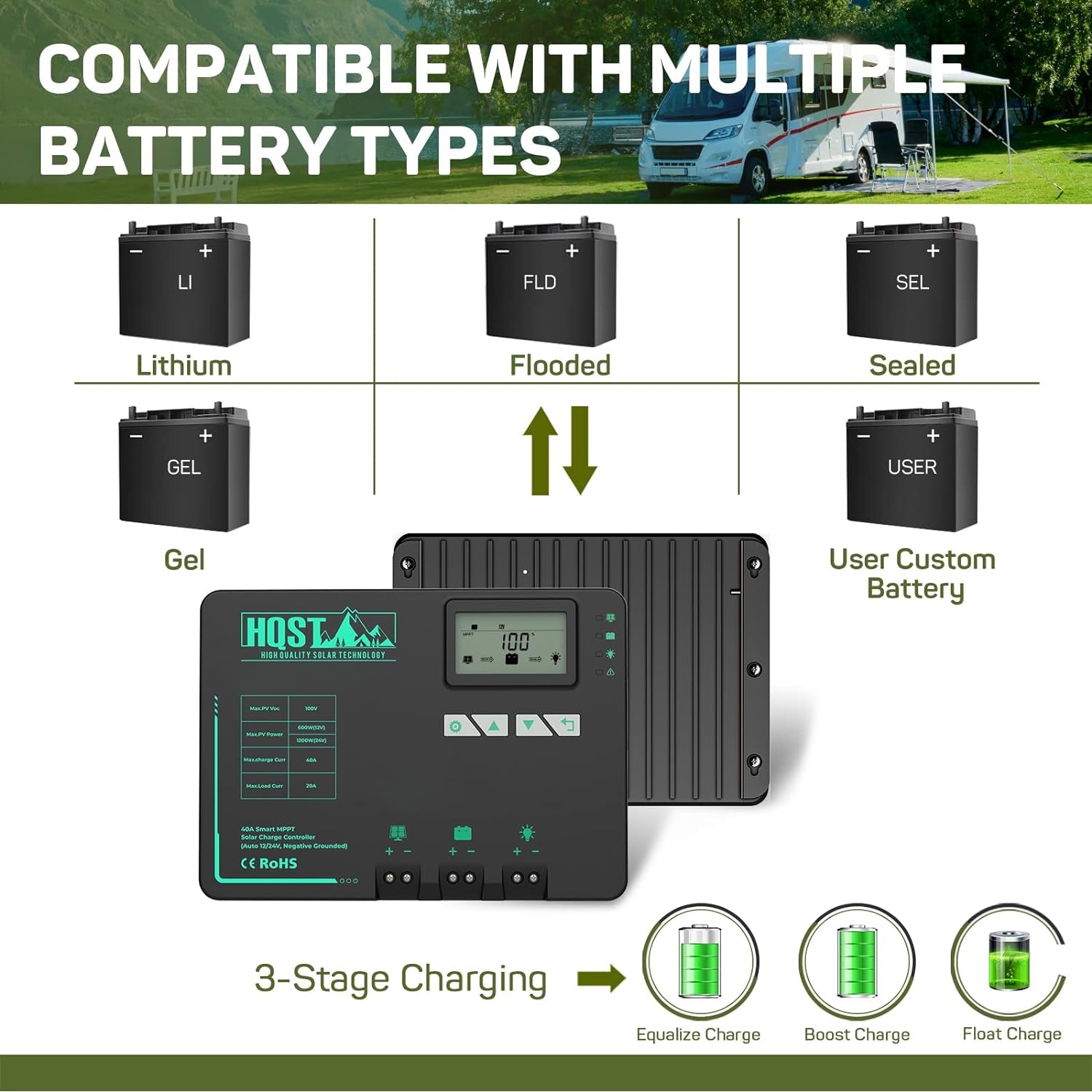

| Battery Type | SLD/Gel/Flooded | SLD/Gel/Flooded | SLD/Gel/Flooded | SLD/Vented/Colloidal/Lithium |
| USB Interface | 5V 1A | 5V 1A | 5V 1A | / |
| Grounding | Common Positive | Common Positive | Common Positive | Negative Grounded |
| Tray Cable | 8FT 10AWG | 8FT 10AWG | 8FT 10AWG | 8FT 10AWG |
